1000LPH FRP SS304 Ro Reverse Water Purification Machines

Material of reverse osmosis system / EDI?
We have different material for different application. Before choosing RO System and Type please contact with our Pro- fessional CHUNKE technical service.

1.Tanks: Fiber glass or Stainless Steel 304/316
2. Pipes: U-PVC or stainless steel filter
3. Frame: Stainless Steel 304 or 316
4. Filter Housing: U-PVC or SS304 or SS316
5. Memrane Housing: FRP or SS304 or SS316

Of course, every application is unique and we want to make sure you find the exact solution that you are looking for, so reach out to CHUNKE professional and ask all the questions you have to find your industrial water filtration solution.

Raw water→raw water tank → raw water booster pump→mechanical filter→activated carbon filter →precise filter →high-pressure pump →Reverse Osmosis Components→pure water tank→pure water

Specifications:

quartz sand filter

Raw water into the filter for a simple mechanical filter, mainly to remove suspended solids in water, colloidal particles and other large impurities in the water

when the water pressure and the pressure difference over 10Psi (0.7kg/cm2) or water SDI> 5, the need for backwashing .

In general, before running back wash once a day.

activated carbon filter

Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to parts of activated carbon

water softer

The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale , resulting in softened water

Precision Filter

The precision filter, also known as cartridge filter housing,

is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.

The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.

RO main machine

This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

ozone mixing tower and generator

Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.

SS304 Water Purification Machines

FRP Water Purification Machines

1000LPH Water Purification Machines

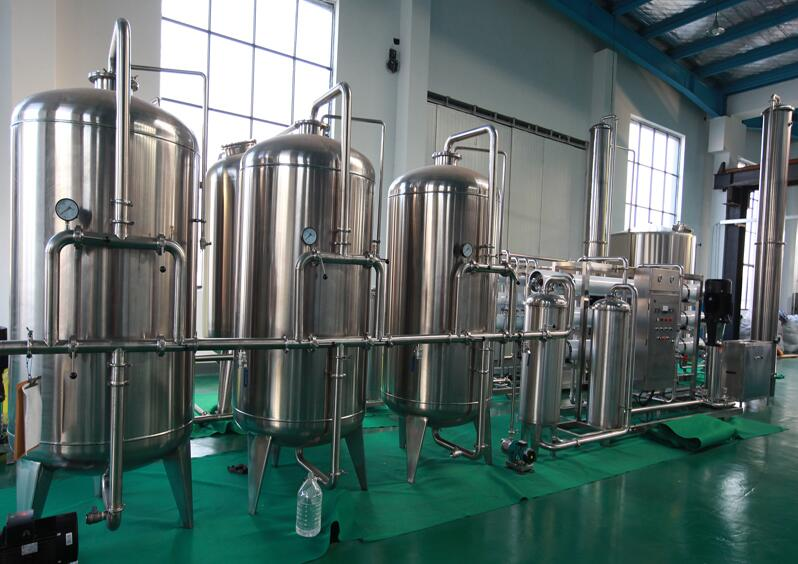

1000LPH FRP SS304 Ro Reverse Water Purification Machines Images
